ADLK-70

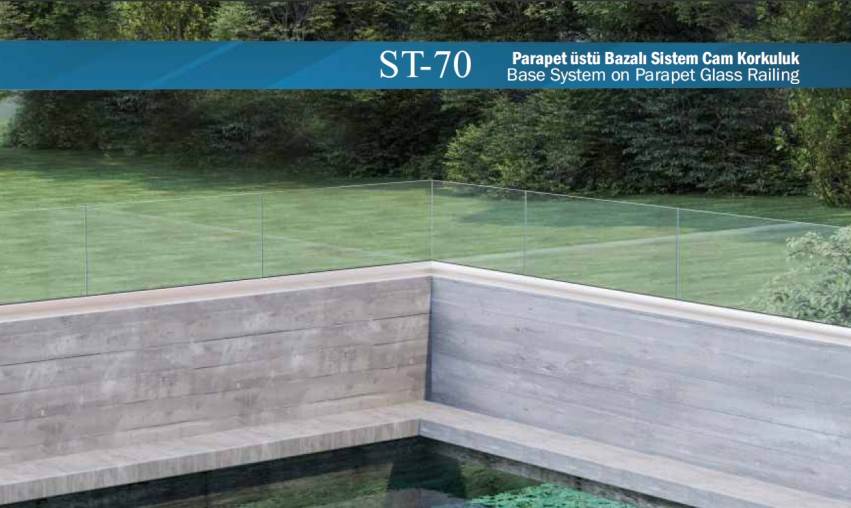

ST-70 Base System on Parapet Glass Railing H= max 700 mm
Aluminum base system for frameless glass balustrades

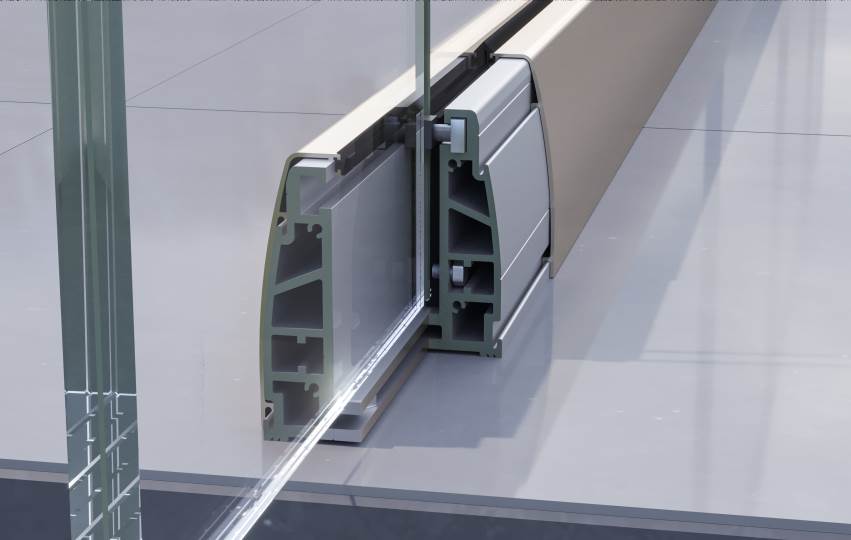

It is the fixing of the glass with aluminum plinth wedges.
Aluminum plinth wedges contain fixing materials such as plastic wedges, spacers and m6 grub screws that tighten from the top.
In addition, the flexing of the system is minimized with the intermediate fixation piece attached to the glass joint gap via the wedge upper
channel. After the windows are fixed with aluminum plinth wedges, the system is closed with 6 meters long aluminum profile coating covers.
Covers can be coated with anodized or ral powder paint.
Material : Aluminium
Installation Type: 15 cm-30 cm Full length wedge / Full length aluminum cover profile
Mounting Type : Top mounted glass balustrade
Coating Option : Anodized / RAL Powder Coating
Glass Thickness: 4+ 4 mm / 5 + 5 mm / 6 + 6 mm/ 8 + 8 mm
